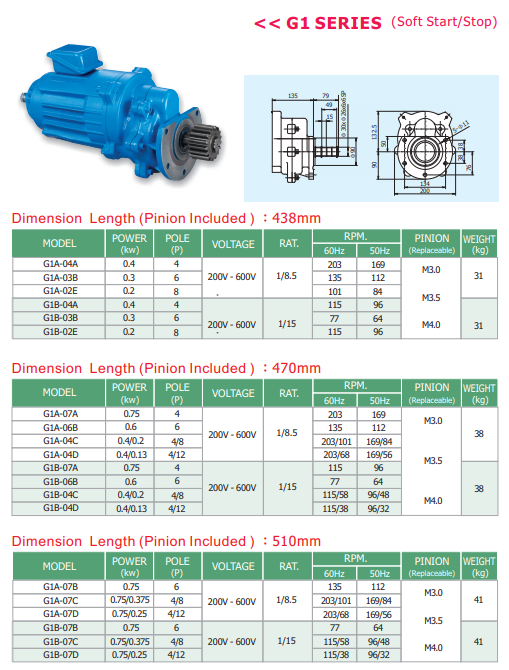

G1 SERIES

SPECIFICATIONS

Hoisting 100%

Traversing 100%

Approximate Dimension 100%

SOFT START/STOP Reduction Gear Motor

Reducer housing is formed from FC25 high strength material and machined with precision on computer programmed CNC
machine.
Gears machined from SCM21 material, teeth are machine grooved, then gears are heat treated to high hardness for long life.
Reducer
Flywheel (Soft Start / Stop)
ncorporate a flywheel provide a smoother acceleration and greatly reduces the pendulum motion when decelerating.
It provides a restraining effect on the starting torque of the motor thus providing a smooth start and stop.
Motor
Motor housing design provides rapid heat disspation.
Motor offers compact design, low starting amperages while yielding high starting torque; A mandatory requirement for motor.
Electromagnetic Brake
DC brake provides excellent braking capability and easy to adjust and control the braking force for custom application.
Employs wear-resistant linings for longer life.
